Description

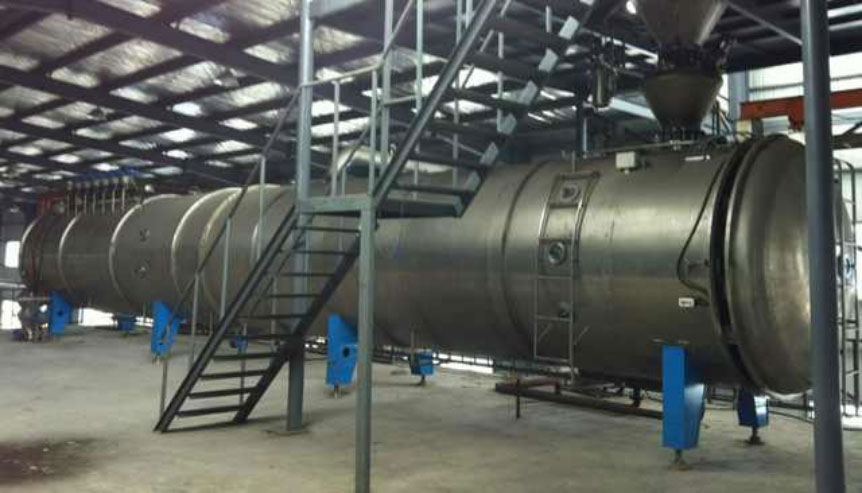

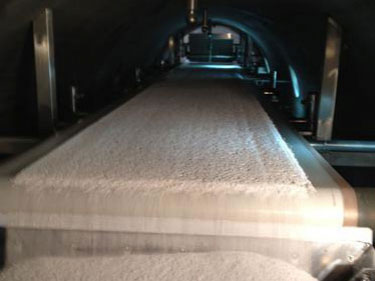

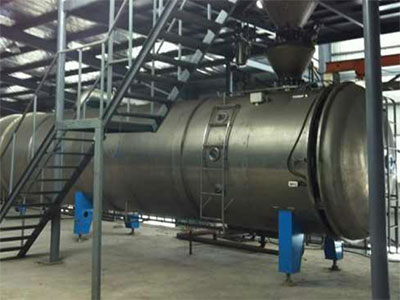

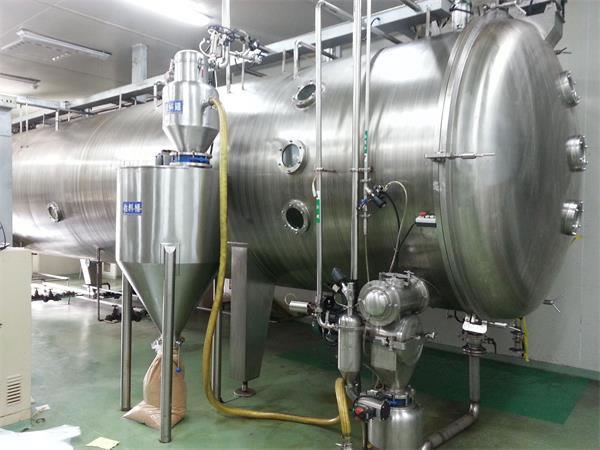

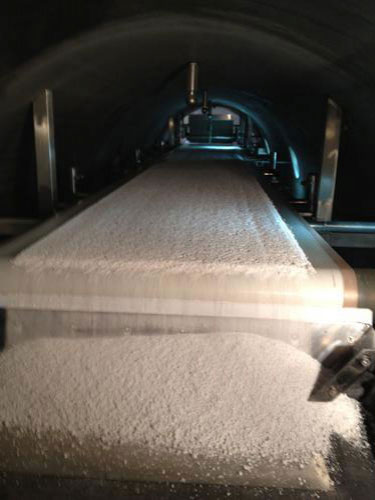

Vacuum continuous freeze dryer is a fully enclosed vacuum belt type drying equipment with continuous material feeding and discharging.

Application
The vacuum continuous freeze dryer can be used for raw material drying such as various solid matter, crystal, particle, powder, granule, fruits etc. It is suitable for traditional Chinese medicine, western medicine, food, chemical industries etc.

Parameters

Type	Diameter mm	Length mm	Height mm	Heating area m2	Heating temperature ℃	Feeding material water content %	Dry material water content %	Water evaporation capacity Kg/h	Associated heat source	Main machine power kw
ZD 15-3	1400	7500	3000	15	20-150	20-80	0.3-5	8-12	Steam or hot water or hot oil	6.00
ZD 35-5	1600	9800	3300	35				18-25		8.00
ZD 50-5	2200	11500	3800	50				25-35		12.00
ZD 70-5	2200	13500	3800	70				35-45		12.00
ZD 80-5	2200	15500	3800	80				40-60		12.00
ZD 120-7	2300	16000	4200	120				70-90		15.00
ZD 160-9	2500	16000	4500	160				90-120		17.00
ZD 220-11	2800	16000	4500	220				120-150		19.00

The vacuum continuous freeze dryer produced by JiangSu Xiandao adopts vacuum low temperature drying. The material feeding, discharging and crushing and forming are all carried out under vacuum condition so that it can avoid chemical changes caused by contacting with air. Because of the adopting of pipelines, this dryer can carry out multiple drying to further improve drying efficiency. Meanwhile, it can reduce production cost.

If you are interested in this dryer, please contact us. We can provide you with more detailed product performance and function introduction. If you have special requirements on the product, you can tell us your demands. We will try our best to improve the design for you.

Data download Vacuum low temperature solid continuous dryer

Xiandao has more than 30 years' experience in producing spray drying equipment and fluid bed granulators. Because of various particle processing plant dryers and granulating machinery, we can offer complete spray drying and granulation solutions used in different industries such as pharmaceutical industry, food industry and chemical industry. Our spray drying machines and granulator machines are certified by ISO9000, ISO14001, CE and CU-TR. Due to superior quality and sufficient spare parts inventory, our machines are sold well in the USA, Japan, Australia, Korea, etc.
