Lab Granulation Coating Machine

  • Lab Granulation Coating Machine
  • Lab Granulation Coating Machine

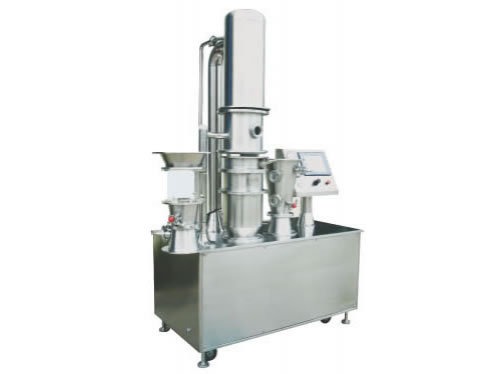

The lab granulating coating machine is a multifunctional equipment which combines the following processing functions such as drying with fluid bed, spray drying, granulating with fluid bed, vortex granulating, vortex coating, bottom spray coating, granulating with rotary bed etc.

This machine can carry out multiple kinds of processing operations. It is suitable for health care product, traditional Chinese medicine capsule, capsule for influenza, antibiotics granulating, pelletizing and coating in industries such as medicine, food and chemical industry etc.

Parameters
Item Machine type
Name Unit 3 5 10 15 30
Vessel diameter mm 400 550 700 800 1000
Production capability kg/ batch 0.75-3 1.2-5 2.5-10 3-15 7.5-30
Fan power kw 3 4 5.5 7.5 7.5
Steam Intensity of pressure Mpa 0.4-0.6
Consumption kg/h Electricity 9KW 12 50 75 100
Compressed air Intensity of pressure Mpa 0.6
Consumption m3 /min 0.3 0.35 0.55 0.6 0.9
Noise dB The fan is isolated so the noise is less than 75 dB.

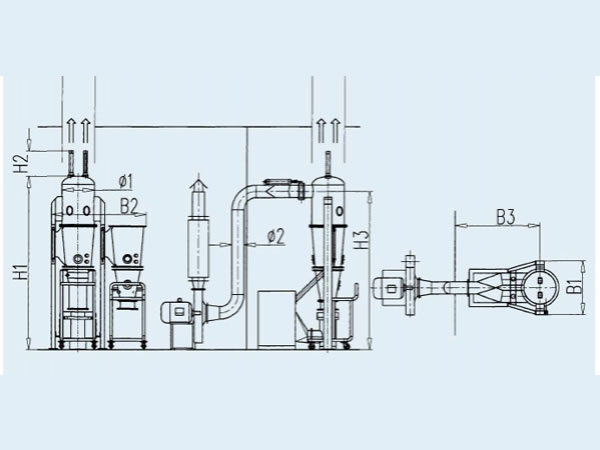

Main machine dimension H 1 (mm) 1950 2260 2610 3170 3500
H 2 (mm) 310 340 340 490 590
H 3 (mm) 1750 2030 2410 2960 3300
¢ 1(mm) 400 550 700 1000 1200
¢ 2(mm) 150 180 250 250 280
B 1 (mm) 660 1050 1160 1460 1660
B 2 (mm) 1200 1650 1880 2480 2880
B 3 (mm) 880 950 1250 1400 1500

Note: for the technical parameter table of the lab granulating coating machine, please take the information of multifunctional pellet coater as reference.

This kind of lab granulating coating machine has many functions such as drying, granulating, pelletizing and coating etc. It can be used to produce large particle electuary of 10-30 meshes. In this page, we displayed 5 kinds of lab granulating coating machines. If you want to learn more about one type of product, please tell us the specific model. We will provide you with more detailed information of the equipment. If there is no coating machine which can meet your requirements, you can tell us your demands. And we will make improvements on the base of the existing types so that it can meet your requirements.
Xiandao has more than 30 years' experience in producing spray drying equipment and fluid bed granulators. Because of various particle processing plant dryers and granulating machinery, we can offer complete spray drying and granulation solutions used in different industries such as pharmaceutical industry, food industry and chemical industry. Our spray drying machines and granulator machines are certified by ISO9000, ISO14001, CE and CU-TR. Due to superior quality and sufficient spare parts inventory, our machines are sold well in the USA, Japan, Australia, Korea, etc.
